Board Description

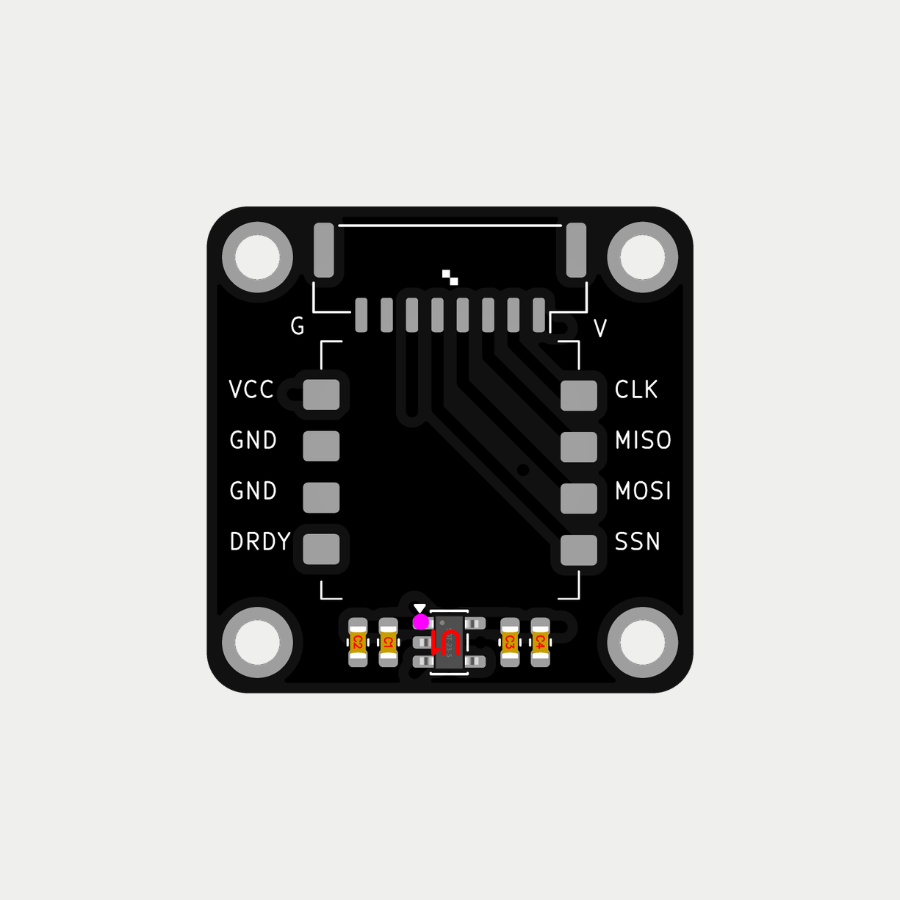

RM3100 magnetometer breakout board with 5V to 3V3 LDO Regulator and JST-GH-8P interface combined with STMicroelectronics ISM330DHCXTR (high-performance 6-axis IMU) via shared SPI bus.
Breakout Board
RM3100-ISM330 Fusion Board
A production-focused PCB design from Volteon SG, engineered for reliable performance and manufacturing readiness in Singapore.
- Material
- FR-4 TG135 Leaded HASL
- Thickness
- 1.6 mm
- Lead time
- 5 days
- Layers
- 4 layer
Board documentation
Technical overview
Technical specifications
Dimension: 24mm * 24mm
